Requirements: A
smart mobile phone with 4G or advanced data + One laptop with Wi Fi + One IP
phone.
Steps to be followed:
1. On your laptop, go to Control Panel > Power options
> Change power settings > Put the computer to sleep (Plugged in) >
Never
2. Switch on Hotspot on your mobile.
3. Connect your laptop with Hotspot of your mobile.

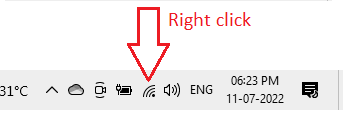

4. Right click on Wi Fi icon on your laptop

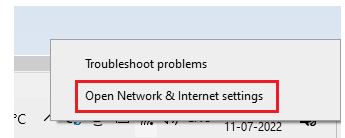

5.
Click on open
Network & Internet settings

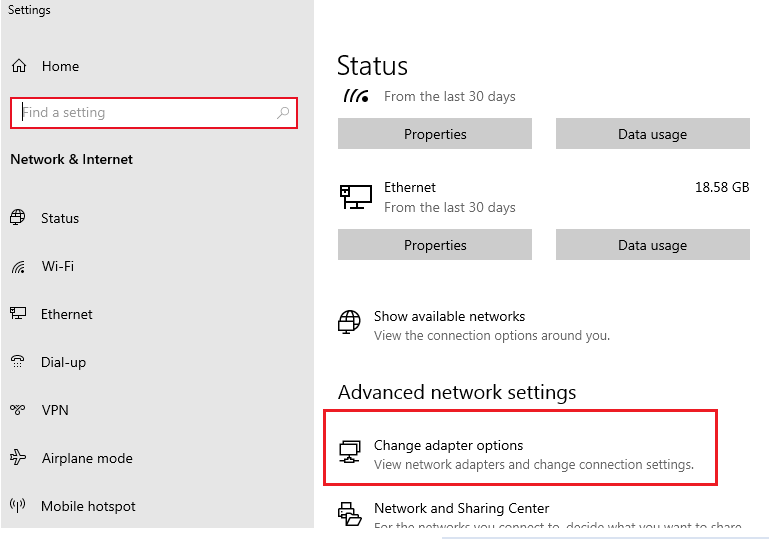

6.
Click on change
adaptor options

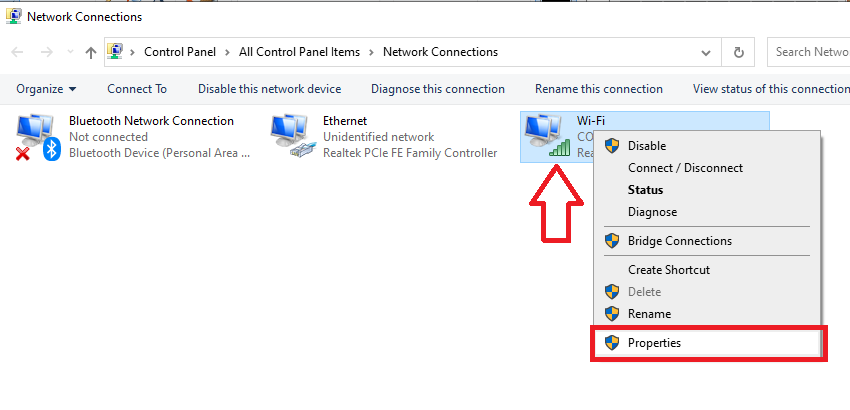

7.
Right-click on
Wi-Fi and go to properties

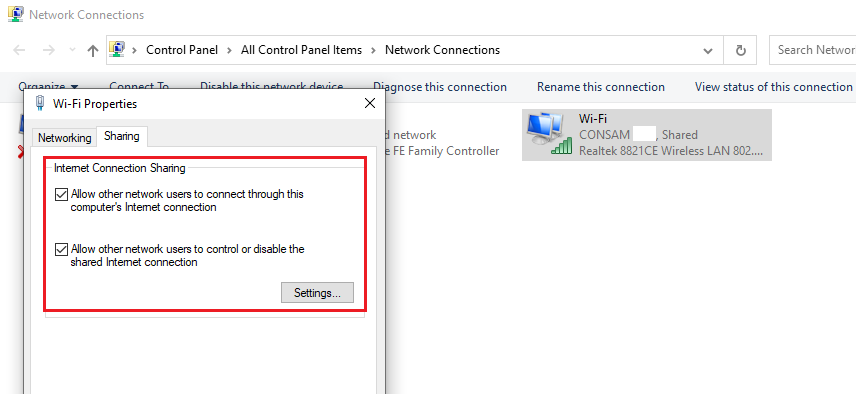

8.
Click Sharing and
then check both the options (i.e., Allow other network users to connect through
this computer’s Internet connection and Allow other network users to control or
disable the shared Internet connection).
9.

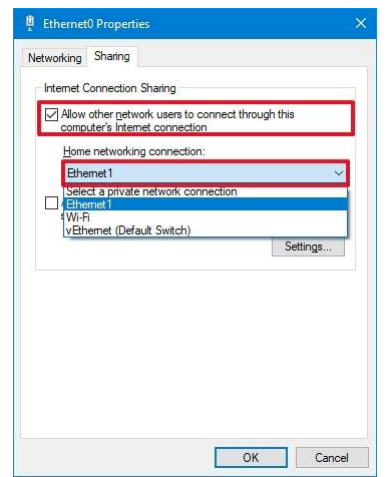

Avoid this in case
you see the above option, else if you see Home networking connection, do the
above and ensure that Active Ethernet connection is selected so that Internet
is shared through your active ethernet connection
10. After doing the above, see network status of your IP
phone and write down IPv4 address (e.g., 192.168.2.20) and in case IPv4 address
of your IP phone is 192.168.2.20, we need to configure Computer’s ethernet IP
to be 192.168.2.1 so that computer acts as server for sharing Internet to IP
phone and for doing so, refer to the belownoted

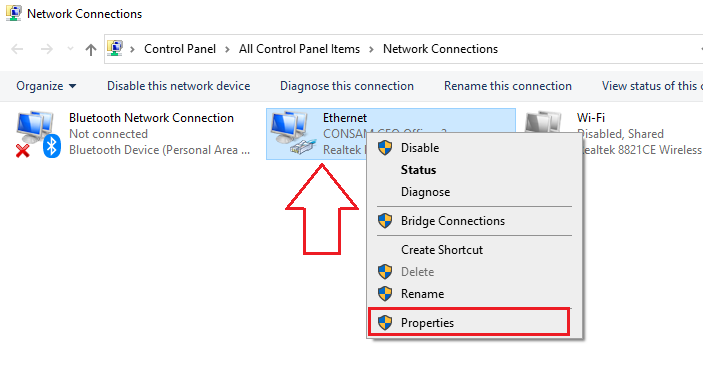

11. Right click on Ethernet and click properties

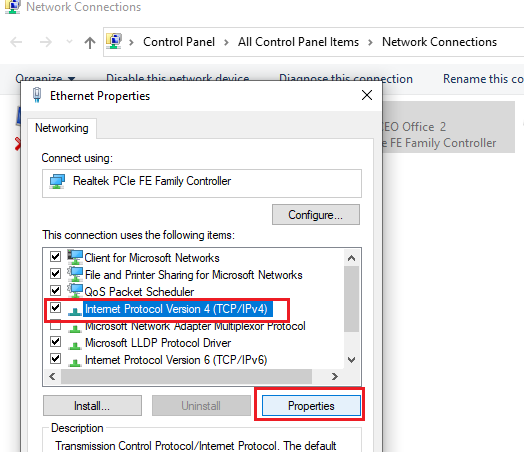

12. Select Internet Protocol Version 4 (TCP/IPv4) and
click Properties

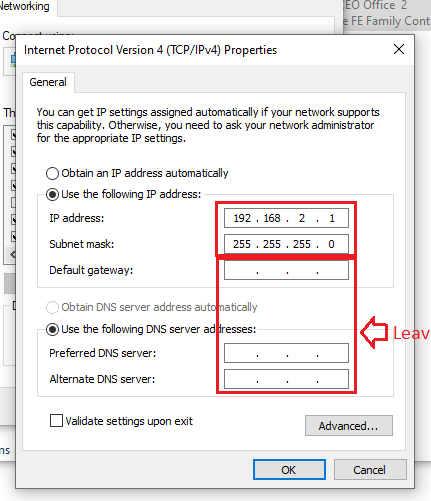

13. Select “Use the following IP address” and put IP
address aswell as Subnet mask as under and your IP phone must connect
14. In case, your IP phone still doesn’t connect, restart
your Computer and then it must connect
End
